NA4919
RNA4919
719
95
110
130
35
1.1
94.4.
208
2880

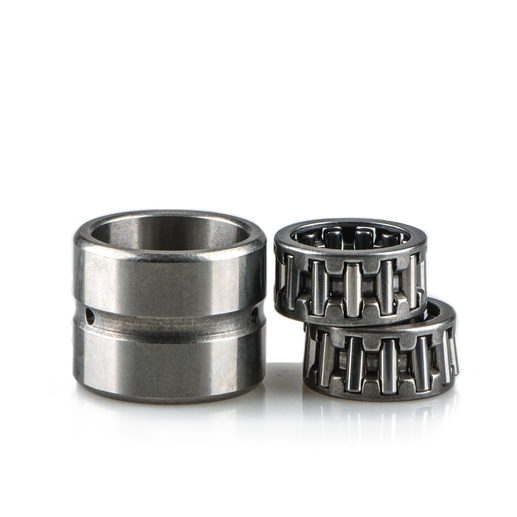

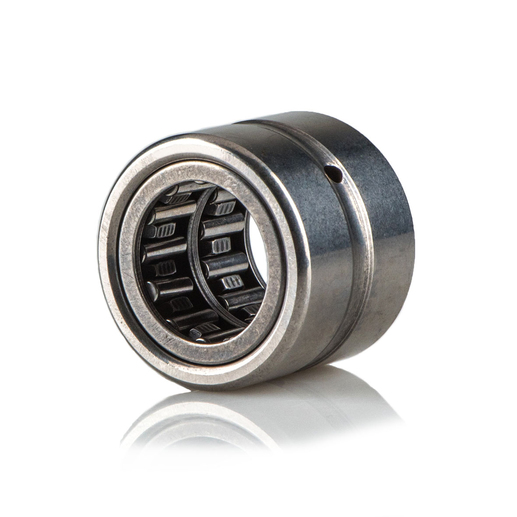

NA4919 is a Machined Ring Needle Roller Bearing (NA/RNA Series).

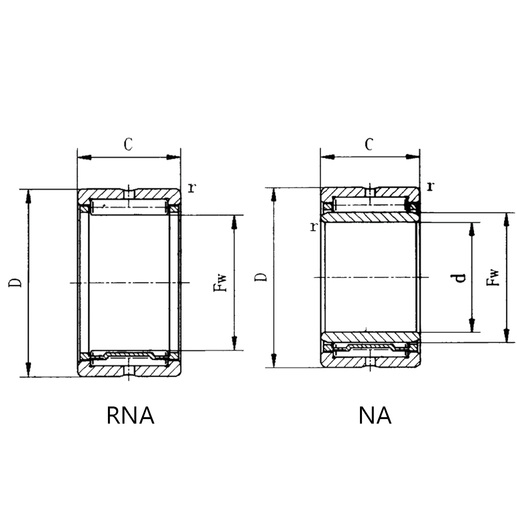

The NA Series includes an inner ring, while the RNA Series uses the shaft as the raceway surface for a more compact design.
Without Inner Ring Type: RNA4919
Bore (d): 95 mm
Outer Ring Bore (Fw): 110 mm
Outer (D): 130 mm
Width (C): 35 mm
Chamfer r min: 1.1 mm
Dynamic Load: 94.4. kN
Static Load: 208 kN
Limiting Speed: 2,880 rpm
Weight: 719 g
Some non-standard or currently out-of-stock bearings may not be immediately available. If you have specific requirements, feel free to contact us — we will do our best to confirm lead times and provide alternative solutions.
