NA4917
RNA4917
657
85
100
120
35
1.1
89.6
189.6
3200

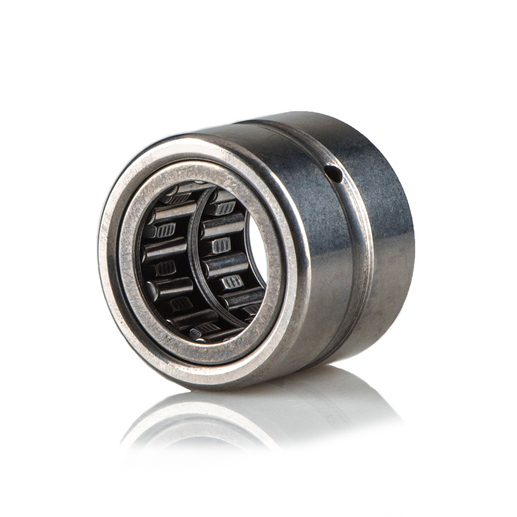

NA4917 is a Machined Ring Needle Roller Bearing (NA/RNA Series).
The NA Series includes an inner ring, while the RNA Series uses the shaft as the raceway surface for a more compact design.
Without Inner Ring Type: RNA4917
Bore (d): 85 mm
Outer Ring Bore (Fw): 100 mm
Outer (D): 120 mm
Width (C): 35 mm
Chamfer r min: 1.1 mm
Dynamic Load: 89.6 kN
Static Load: 189.6 kN
Limiting Speed: 3,200 rpm
Weight: 657 g
Some non-standard or currently out-of-stock bearings may not be immediately available. If you have specific requirements, feel free to contact us — we will do our best to confirm lead times and provide alternative solutions.
