NA4836
RNA4836
2680
180
195
225
45
1.1
156
432
1680

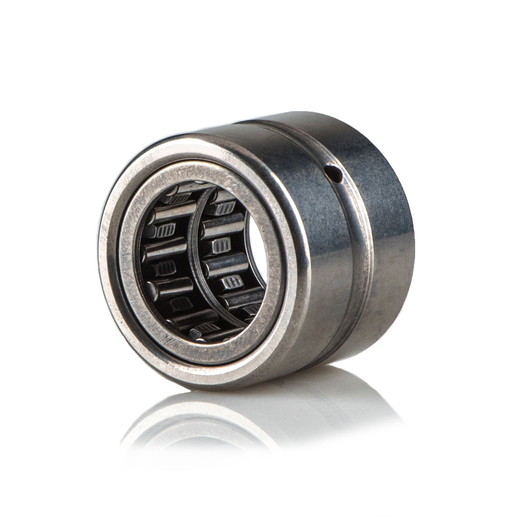

NA4836 is a Machined Ring Needle Roller Bearing (NA/RNA Series).
The NA Series includes an inner ring, while the RNA Series uses the shaft as the raceway surface for a more compact design.
Without Inner Ring Type: RNA4836
Bore (d): 180 mm
Outer Ring Bore (Fw): 195 mm
Outer (D): 225 mm
Width (C): 45 mm
Chamfer r min: 1.1 mm
Dynamic Load: 156 kN
Static Load: 432 kN
Limiting Speed: 1,680 rpm
Weight: 2680 g
Some non-standard or currently out-of-stock bearings may not be immediately available. If you have specific requirements, feel free to contact us — we will do our best to confirm lead times and provide alternative solutions.
