NA4826
RNA4826
950
130
145
170
35
1.1
94.4
244
2240

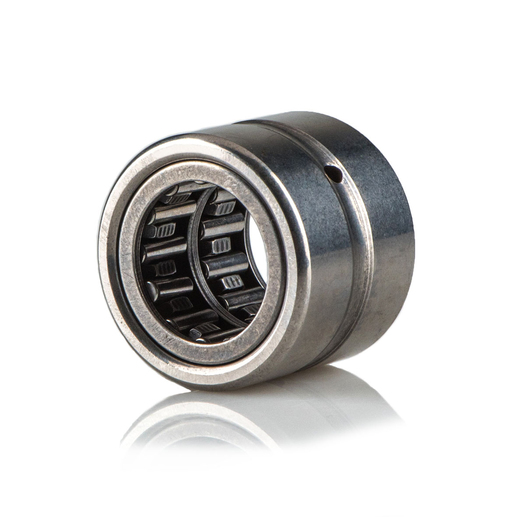

NA4826 is a Machined Ring Needle Roller Bearing (NA/RNA Series).
The NA Series includes an inner ring, while the RNA Series uses the shaft as the raceway surface for a more compact design.
Without Inner Ring Type: RNA4826
Bore (d): 130 mm
Outer Ring Bore (Fw): 145 mm
Outer (D): 170 mm
Width (C): 35 mm
Chamfer r min: 1.1 mm
Dynamic Load: 94.4 kN
Static Load: 244 kN
Limiting Speed: 2,240 rpm
Weight: 950 g
Some non-standard or currently out-of-stock bearings may not be immediately available. If you have specific requirements, feel free to contact us — we will do our best to confirm lead times and provide alternative solutions.
