NA4824
RNA4824
730
120
130
150
30
1
79.6
186.4
2480

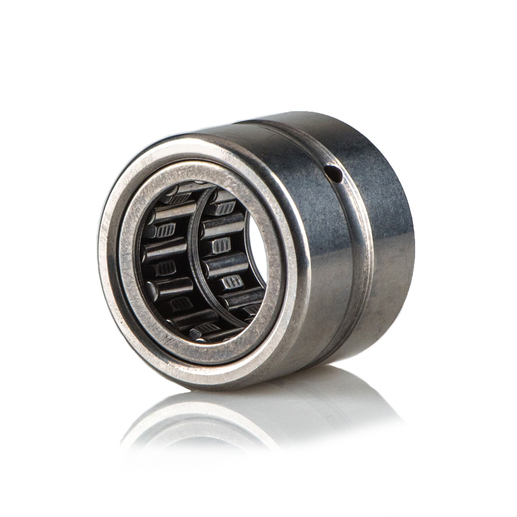

NA4824 is a Machined Ring Needle Roller Bearing (NA/RNA Series).
The NA Series includes an inner ring,while the RNA Series uses the shaft as the raceway surface for a more compact design.
Without Inner Ring Type: RNA4824
Bore (d): 120 mm
Outer Ring Bore (Fw): 130 mm
Outer (D): 150 mm
Width (C): 30 mm
Chamfer r min: 1 mm
Dynamic Load: 79.6 kN
Static Load: 186.4 kN
Limiting Speed: 2,480 rpm
Weight: 730 g
Some non-standard or currently out-of-stock bearings may not be immediately available. If you have specific requirements, feel free to contact us — we will do our best to confirm lead times and provide alternative solutions.
