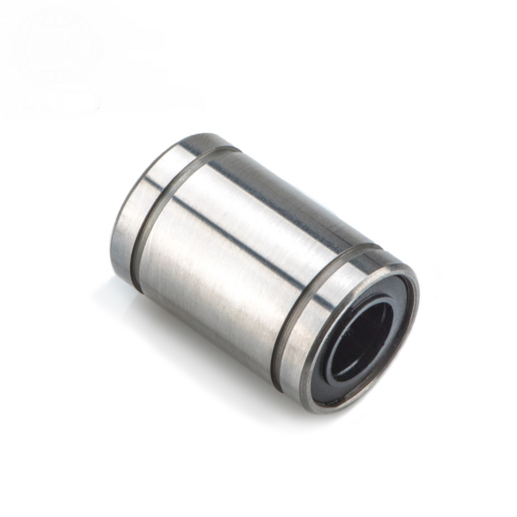

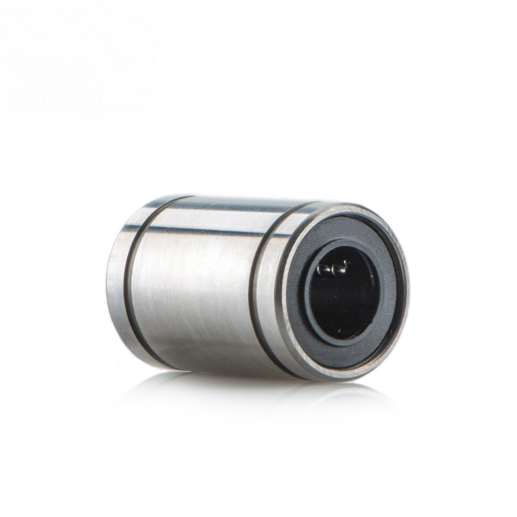

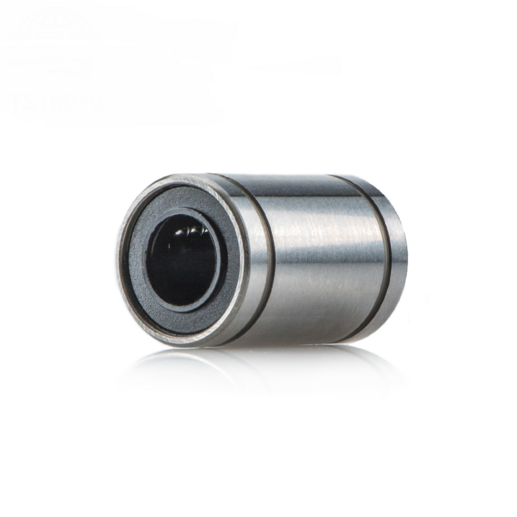

LM8UU is a Linear Motion Bearing (LM Series) designed for linear reciprocating motion, used with a matching smooth shaft.
It provides low friction, stable motion, high precision under heavy loads, low noise, and high rigidity.

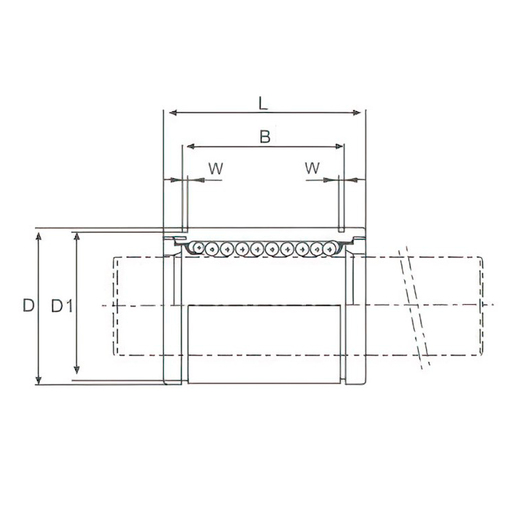

Bore (dr): 8 mm
Outer (D): 15 mm
Length (L): 24 mm
B: 17.5 mm
W: 1.1 mm
D1: 14.3 mm
h: 1 mm
Dynamic Load: 27.94 kgf
Static Load: 39.97 kgf
Weight: 17 g
