686ZZ
L-1360zz
LF-1360zz
-
6
13
5
2.68
15
1
1.1
686ZZ is a Miniature Bearing, a smaller type of deep groove ball bearing with a bore diameter of less than 10mm.
Available in metric series with multiple sealing options including ZZ steel shields and RS rubber seals.
NMB Equivalent: L-1360zz
Also Designated As: 686 ZZ
Flange Type: LF-1360
Flange Type 2: LF-1360zz

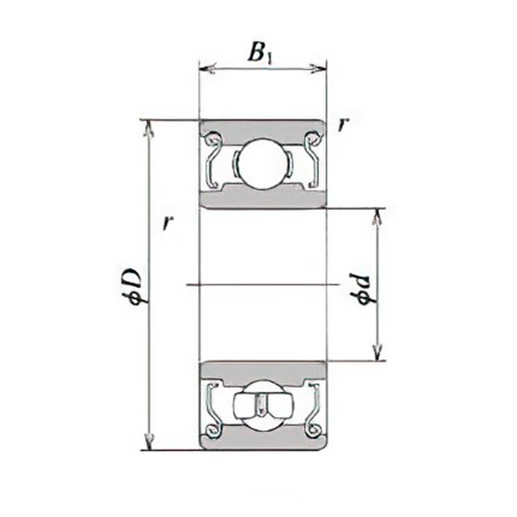

Bore (d): 6 mm
Outer (D): 13 mm
Width (B): 5 mm
D1: 15 mm
C1: 1 mm
C2: 1.1 mm
Weight: 2.68 g
Some non-standard or currently out-of-stock bearings may not be immediately available. If you have specific requirements, feel free to contact us — we will do our best to confirm lead times and provide alternative solutions.
