6332

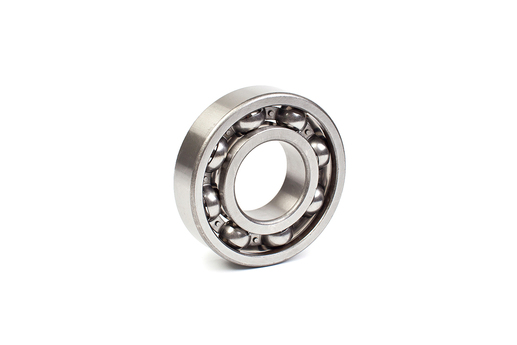

6332 is a Deep Groove Ball Bearing, the most common type of ball bearing, consisting of an inner ring, outer ring, steel balls, and a cage.

Its simple structure, low friction, and high speed capability allow it to support both radial loads and axial loads in both directions.

It offers durability, ease of mass production, and low maintenance costs, making it widely used in various mechanical equipment.

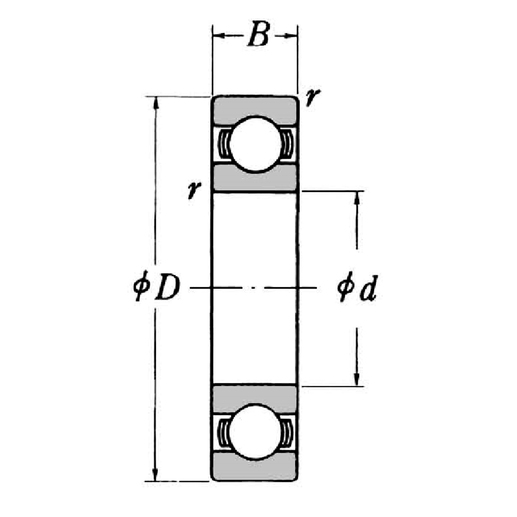

Bore (d): 160 mm
Outer (D): 340 mm
Width (B): 68 mm
Chamfer (r): 5 mm
Dynamic Load: 21800 kgf
Static Load: 26600 kgf
Limiting Speed (ZZ/2RS): 1700 rpm
Limiting Speed (OPEN): 2000 rpm
Weight: 29,000 g

This model is available in OPEN, ZZ, and 2RS sealing types.
